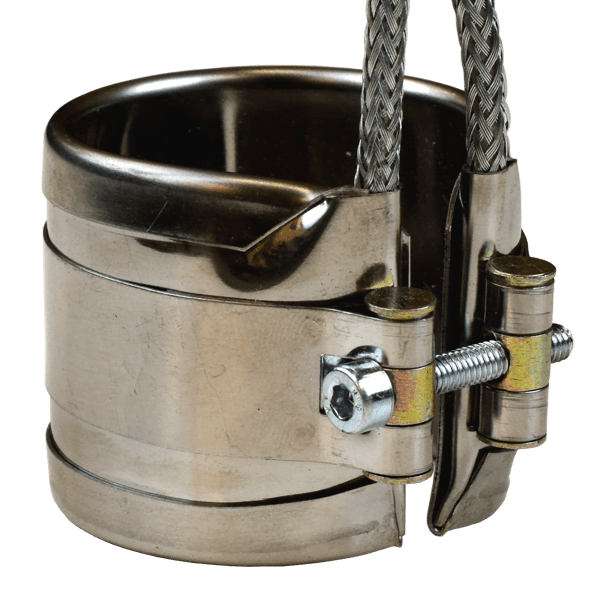

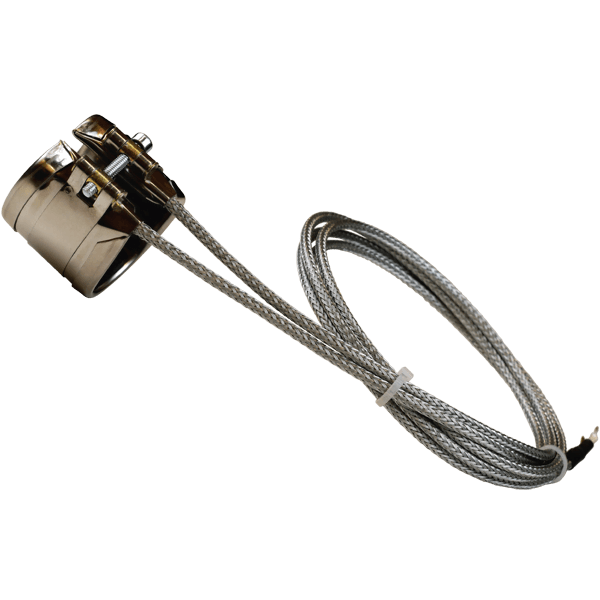

These nozzle heaters have a casing of stainless steel and are equipped with flexible metal braided leads. The leads are connected on each side of the casing which makes the nozzle heaters easy to install in narrow spaces. The nozzle heaters are robust and are designed for contact with melted plastics like PVC-plastics, ABS-plastics, PTFE-plastics, PEEK-plastics and more.
The nozzle heaters need to be controlled by a control system with extern sensor or thermocouple type J that IHP integrates inside the heater. Standard range includes inner diameters from ø25mm to ø100mm and is available in many power versions and widths.
IHP designs also unique heating products for production techniques like extrusion and injection molding.
| Surface load up to 7W/cm² | |
| Working temperature up to 370°C | |
| Supply 230V as standard (other supply can be customized) | |
| Built in thermocouple as an option | |
| Resistance wire of nickel/chrome 80/20 | |
| Built in insulation of pure micanite | |
| Casing of stainless steel AISI430 | |
| Metal braided supply cable 1000mm | |
| Largest diameter and width ø110 x 200mm as standard |

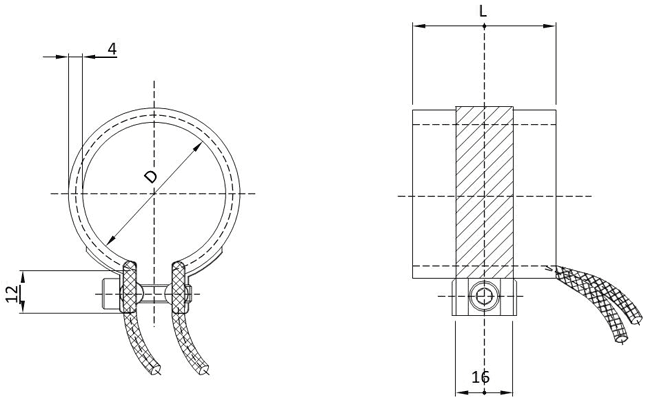

| Article number | Diameter (mm) | Width (mm) | Power (W) | |
| 136-Z15025030 | 25 | 30 | 115 | |
| 136-Z15030025 | 30 | 25 | 125 | |
| 136-Z15030030 | 30 | 30 | 155 | |
| 136-Z15030035 | 30 | 35 | 180 | |
| 136-Z15030040 | 30 | 40 | 205 | |
| 136-Z15035025 | 35 | 25 | 150 | |
| 136-Z15035030 | 35 | 30 | 180 | |
| 136-Z15035035 | 35 | 35 | 210 | |
| 136-Z15035040 | 35 | 40 | 240 | |
| 136-Z15035045 | 35 | 45 | 270 | |
| 136-Z15040025 | 40 | 25 | 170 | |
| 136-Z15040030 | 40 | 30 | 205 | |
| 136-Z15040035 | 40 | 35 | 240 | |
| 136-Z15040040 | 40 | 40 | 275 | |
| 136-Z15040045 | 40 | 45 | 310 | |
| 136-Z15042025 | 42 | 25 | 180 | |
| 136-Z15042030 | 42 | 30 | 215 | |
| 136-Z15042035 | 42 | 35 | 250 | |
| 136-Z15042040 | 42 | 40 | 290 | |
| 136-Z15045025 | 45 | 25 | 190 | |
| 136-Z15045030 | 45 | 30 | 230 | |
| 136-Z15045035 | 45 | 35 | 270 | |
| 136-Z15045040 | 45 | 40 | 310 | |
| 136-Z15045045 | 45 | 45 | 345 | |
| 136-Z15045050 | 45 | 50 | 385 | |
| 136-Z15050020 | 50 | 20 | 170 | |
| 136-Z15050025 | 50 | 25 | 215 | |
| 136-Z15050030 | 50 | 30 | 255 | |
| 136-Z15050035 | 50 | 35 | 300 | |
| 136-Z15050040 | 50 | 40 | 345 | |
| 136-Z15050050 | 50 | 50 | 430 | |
| 136-Z15055020 | 55 | 20 | 185 | |
| 136-Z15055025 | 55 | 25 | 235 | |
| 136-Z15055030 | 55 | 30 | 280 | |
| 136-Z15055035 | 55 | 35 | 330 | |
| 136-Z15055040 | 55 | 40 | 375 | |
| 136-Z15055050 | 55 | 50 | 470 | |
| 136-Z15055060 | 55 | 60 | 565 | |
| 136-Z15060020 | 60 | 20 | 205 | |
| 136-Z15060025 | 60 | 25 | 255 | |
| 136-Z15060030 | 60 | 30 | 310 | |
| 136-Z15060035 | 60 | 35 | 360 | |
| 136-Z15060040 | 60 | 40 | 410 | |
| 136-Z15060050 | 60 | 50 | 515 | |
| 136-Z15060060 | 60 | 60 | 620 | |
| 136-Z15065020 | 65 | 20 | 220 | |
| 136-Z15065025 | 65 | 25 | 280 | |
| 136-Z15065030 | 65 | 30 | 335 | |
| 136-Z15065035 | 65 | 35 | 390 | |
| 136-Z15065040 | 65 | 40 | 445 | |
| 136-Z15065050 | 65 | 50 | 560 | |
| 136-Z15065060 | 65 | 60 | 670 | |
| 136-Z15070020 | 70 | 20 | 240 | |
| 136-Z15070025 | 70 | 25 | 300 | |
| 136-Z15070030 | 70 | 30 | 360 | |
| 136-Z15070035 | 70 | 35 | 420 | |
| 136-Z15070040 | 70 | 40 | 480 | |
| 136-Z15070050 | 70 | 50 | 600 | |
| 136-Z15070060 | 70 | 60 | 725 | |
| 136-Z15075020 | 75 | 20 | 255 | |
| 136-Z15075025 | 75 | 25 | 320 | |
| 136-Z15075030 | 75 | 30 | 385 | |
| 136-Z15075035 | 75 | 35 | 450 | |
| 136-Z15075040 | 75 | 40 | 515 | |
| 136-Z15075050 | 75 | 50 | 645 | |
| 136-Z15075060 | 75 | 60 | 775 | |
| 136-Z15080020 | 80 | 20 | 275 | |
| 136-Z15080025 | 80 | 25 | 345 | |
| 136-Z15080030 | 80 | 30 | 410 | |
| 136-Z15080035 | 80 | 35 | 480 | |
| 136-Z15080040 | 80 | 40 | 550 | |
| 136-Z15080050 | 80 | 50 | 690 | |
| 136-Z15080060 | 80 | 60 | 825 | |
| 136-Z15085020 | 85 | 20 | 290 | |
| 136-Z15085025 | 85 | 25 | 365 | |
| 136-Z15085030 | 85 | 30 | 440 | |
| 136-Z15085035 | 85 | 35 | 510 | |
| 136-Z15085040 | 85 | 40 | 585 | |
| 136-Z15085050 | 85 | 50 | 730 | |
| 136-Z15085060 | 85 | 60 | 880 | |
| 136-Z15090020 | 90 | 20 | 310 | |
| 136-Z15090025 | 90 | 25 | 385 | |
| 136-Z15090030 | 90 | 30 | 465 | |
| 136-Z15090035 | 90 | 35 | 540 | |
| 136-Z15090040 | 90 | 40 | 620 | |
| 136-Z15090050 | 90 | 50 | 775 | |
| 136-Z15090060 | 90 | 60 | 930 | |
| 136-Z15095020 | 95 | 20 | 325 | |
| 136-Z15095025 | 95 | 25 | 410 | |
| 136-Z15095030 | 95 | 30 | 490 | |
| 136-Z15095035 | 95 | 35 | 570 | |
| 136-Z15095040 | 95 | 40 | 655 | |
| 136-Z15095050 | 95 | 50 | 820 | |
| 136-Z15095060 | 95 | 60 | 980 | |
| 136-Z15100020 | 100 | 20 | 345 | |
| 136-Z15100025 | 100 | 25 | 430 | |
| 136-Z15100030 | 100 | 30 | 515 | |
| 136-Z15100035 | 100 | 35 | 600 | |
| 136-Z15100040 | 100 | 40 | 690 | |
| 136-Z15100050 | 100 | 50 | 860 | |
| 136-Z15100060 | 100 | 60 | 1030 |
